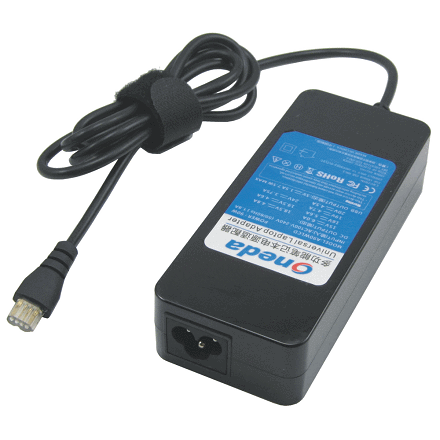

» Universal laptop adapter » Oneda 90W LCD Universal Laptop AC Adapter With USB Black
-
Brand: Oneda
Power: 90W
Input: AC 100~240V 1.8A (50-60Hz)
Output: 14.5V / 15V / 16V / 16.5V / 18.5V / 19V / 19.5V / 20V (90W Max)
USB output: 5V 2.1A (10.5W Max)
Mainbody dimention: 133*58*31mm (L*W*H)
Net weight: 285G
Black colour
Features:
Double chipset innovation provides constant true voltage automatically with low consumption.
Built with overcurrent protection,overvoltage protection,over temperature protection and short circuit protection.
Innovative connectors design provides required voltages and polarity.
More than 35 types of removeable connectors for option,can fit most of Laptop/Netbook/Tablet PC.
Colourful LCD display show the output voltage and working information.
5V 2.1A USB output fit for iPhone, iPad, iPod, Tablet PC , Mobile phones, MP3, MP4, PSP, Digital camera, GPS, etc.
connector specifications list:TIP NO. OUTPUT TIP SIZE FIT MACHINE MODELS M1 15V (90W Max) 6.3*3.0*12mm Toshiba:15V/3A,15V/4A,15V/5A,15V/6A; NEC:15V/6A etc. M2 16V (90W Max) 5.5*2.5*12mm IBM,Lenovo:16V/3.36A,16V/3.5A,16V/4.5A etc. M3 16V (90W Max) 6.5*4.4*10mm Fujitsu:16V/3.36A,16V/3.75A; Sony:16V/3.42A,16V/3.75A,16V/4A etc. M4 18.5V (90W Max) 4.8*1.7*12mm HP/Compaq:18.5V/1.1A,18.5V/2.7A,18.5V/3.5A,18.5V/3.8A,18.5V/4.74A, 18.5V/4.9A etc.
M4B 19V(90W Max) 4.8*1.7*12mm Bullet HP/Compaq:18.5V/2.1A,18.5V/4.9A,19V/4.74A; LG:18.5V 3.5A etc. M5 19V (90W Max) 5.5*2.5*12mm Acer:19V/3.42A,19V/4.74A; Asus:19V/3.42A,19V/4.74A; Detla:19V/2.64A,19V/3.16A,19V/3.42A,19V/4.74A;
Gateway:19V/2.64A,19V/3.16A,19V/3.42A,19V/4.74A;
Hasee:19V/3.42A,19V/4.74A; IBM:19V/3.16A,19V/4.2A； NEC:19V/4.74A;
Toshiba:19V/3.42A,19V/3.95A,19V/4.74A; Lenovo:19V/4.74A;
Liteon:19V/3.16A,19V/3.42A,19V/3.95A,19V/4.74A etc.
M6 19V (90W Max) 5.5*3.0*12mm Samsung:19V/2.1A,19V/3.16A,19V/4.74A etc. M7 19V (90W Max) 5.5*2.1*12mm Acer:19V/3.16A,19V/3.42A,19V/4.74A; Liteon:19V/3.16A,19V/3.42A,19V/4.74A; NEC:19V/3.16A etc.
M8 19.5V (90W Max) 6.5*4.4*10mm Sony:19.5V/2.15A,19.5V/3A,19.5V/3.9A,19.5V/4.1A,19.5V/4.74A, 19.5V/5.13A etc. M9 19.5V (90W Max) 7.4*5.0*12mm Dell:19.5V/3.34A,19.5V/4.62A etc. M10 20V (90W Max) 3 Holes Dell:20V/3.5A,20V/4.5A etc. M11 20V (90W Max) 7.9*5.4*12mm IBM,Lenovo:20V/3.25A,20V/4.5A etc. M12 18.5V (90W Max) 7.4*5.0*12mm HP/Compaq:18.5V/3.5A,18.5V/4.9A,18.5V/6.5A,19V/4.74A etc. M14 18.5V(90W Max) OVAL HP/Compaq:18.5V/4.9A etc. M15 19V(90W Max) 5.5*1.7*12mm Acer:19V/3.16A,19V/3.42A,19V/4.74A; Liteon:19V/3.16A,19V/3.42A,19V/4.74A etc. M16 16.5V(90W Max) Magsafe Apple Macbook Pro:16.5V/3.65A. M17 18.5V(90W Max) Magsafe Apple Macbook Pro:18.5V/4.6A. M18 14.5V(90W Max) Magsafe Apple Macbook Air:14.5V /3.1A. M16B 16.5V(90W Max) Magsafe 2 Apple Macbook Pro Retina:16.5V/3.65A. M17B 20V(90W Max) Magsafe 2 Apple Macbook Pro Retina:20V/4.25A. M18B 14.85V(90W Max) Magsafe 2 Apple New Macbook Air:14.85V/3.05A. M16C 16.5V(90W Max) Magsafe Apple Old Macbook Pro:16.5V/3.65A. M17C 18.5V(90W Max) Magsafe Apple Old Macbook Pro:18.5V/4.6A. M19 19V(90W Max) 2.5*0.7*10mm Asus:19V/2.1A etc. M20 19V(90W Max) 4.0*1.7*12mm HP:19V/1.58A etc. M21 19.5V(90W Max) Octagonal / Chip inside Dell:19.5V3.34A etc. M22 19V(90W Max) 3.0*1.0*10mm Samsung:19V/2.1A etc. M23 19.5V(90W Max) 4.5*3.0*12mm Chip inside
Dell:19.5V/2.31A etc. M24 19.5V(90W Max) 4.0*1.7*12mm Bullet HP:19.5V/2.05A etc. M25 20V(90W Max) 5.5*2.5*12mm Lenovo:20V/2A,20V/3.25A,20V/4.5A etc. M26 19V(90W Max) 4.0*1.35*10mm Asus:19V/3.42A; 19V/2.37A; 19V/4.74A etc. M27 19V(90W Max) 4.5*3.0*10mm Asus:19V/3.42A; 19V/4.74A etc. M28 20V(90W Max) Square 11*4.5*11mm Lenovo:20V/2.25A ; 20V/3.25A; 20V/4.5A etc. M29 19.5V(90W Max) 4.5*3.0*12mm Blue tip HP Envy:19.5V/4.62A; 19.5V/2.31A etc. M30 19.5V(90W Max) 4.8*1.7*10mm Long tip HP Envy:19.5V/3.33A ；19.5V/4.7A etc.
