» Universal laptop adapter » Oneda 90W LCD Universal Laptop AC Adapter With USB White

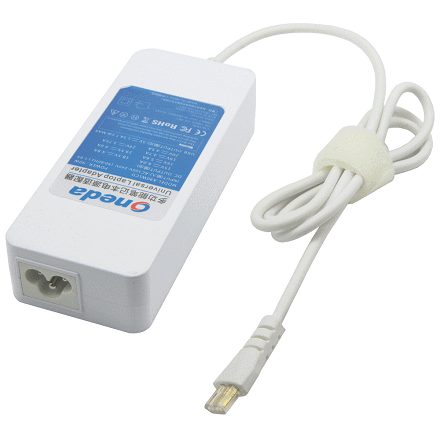

Oneda 90W LCD Universal Laptop AC Adapter With USB White

Brand: Oneda Power: 90W Input: AC 100~240V 1.8A (50-60Hz) Output: 14.5V / 15V / 16V / 16.5V / 18.5V / 19V / 19.5V / 20V (90W Max) USB output: 5V 2.1A……

  • Product Specification

    Power 90W
    Output Universal
    Tip size Universal
  • Choose your country or region :

    United Kingdom United States Germany Japan China Taiwan Hongkong
  • Product Details
  • Brand: Oneda

    Power: 90W

    Input: AC 100~240V 1.8A (50-60Hz)

    Output: 14.5V / 15V / 16V / 16.5V / 18.5V / 19V / 19.5V / 20V (90W Max)

    USB output: 5V 2.1A (10.5W Max)

    Mainbody dimention: 133*58*31mm (L*W*H)

    Net weight: 285G

    White colour

    Features:

    Double chipset innovation provides constant true voltage automatically with low consumption.

    Built with overcurrent protection,overvoltage protection,over temperature protection and short circuit protection.

    Innovative connectors design provides required voltages and polarity.

    More than 35 types of removeable connectors for option,can fit most of Laptop/Netbook/Tablet PC.

    Colourful LCD display show the output voltage and working information.

    5V 2.1A USB output fit for iPhone, iPad, iPod, Tablet PC , Mobile phones, MP3, MP4, PSP, Digital camera, GPS, etc.





    connector specifications list:






    TIP NO. OUTPUT TIP SIZE FIT MACHINE MODELS
    M1 15V (90W Max) 6.3*3.0*12mm    Toshiba:15V/3A,15V/4A,15V/5A,15V/6A;   NEC:15V/6A etc.
    M2 16V (90W Max) 5.5*2.5*12mm    IBM,Lenovo:16V/3.36A,16V/3.5A,16V/4.5A etc.
    M3 16V (90W Max) 6.5*4.4*10mm    Fujitsu:16V/3.36A,16V/3.75A;   Sony:16V/3.42A,16V/3.75A,16V/4A etc.
    M4 18.5V (90W Max) 4.8*1.7*12mm    HP/Compaq:18.5V/1.1A,18.5V/2.7A,18.5V/3.5A,18.5V/3.8A,18.5V/4.74A,









       18.5V/4.9A etc.

    M4B 19V(90W Max) 4.8*1.7*12mm Bullet    HP/Compaq:18.5V/2.1A,18.5V/4.9A,19V/4.74A;   LG:18.5V 3.5A etc.
    M5 19V (90W Max) 5.5*2.5*12mm    Acer:19V/3.42A,19V/4.74A;    Asus:19V/3.42A,19V/4.74A;









       Detla:19V/2.64A,19V/3.16A,19V/3.42A,19V/4.74A;

       Gateway:19V/2.64A,19V/3.16A,19V/3.42A,19V/4.74A;

       Hasee:19V/3.42A,19V/4.74A;   IBM:19V/3.16A,19V/4.2A;   NEC:19V/4.74A;

       Toshiba:19V/3.42A,19V/3.95A,19V/4.74A;   Lenovo:19V/4.74A;

       Liteon:19V/3.16A,19V/3.42A,19V/3.95A,19V/4.74A etc.

    M6 19V (90W Max) 5.5*3.0*12mm    Samsung:19V/2.1A,19V/3.16A,19V/4.74A etc.
    M7 19V (90W Max) 5.5*2.1*12mm    Acer:19V/3.16A,19V/3.42A,19V/4.74A;









       Liteon:19V/3.16A,19V/3.42A,19V/4.74A;    NEC:19V/3.16A etc.

    M8 19.5V (90W Max) 6.5*4.4*10mm    Sony:19.5V/2.15A,19.5V/3A,19.5V/3.9A,19.5V/4.1A,19.5V/4.74A, 19.5V/5.13A etc.
    M9 19.5V (90W Max) 7.4*5.0*12mm    Dell:19.5V/3.34A,19.5V/4.62A etc.
    M10 20V (90W Max) 3 Holes    Dell:20V/3.5A,20V/4.5A etc.
    M11 20V (90W Max) 7.9*5.4*12mm    IBM,Lenovo:20V/3.25A,20V/4.5A etc.
    M12 18.5V (90W Max) 7.4*5.0*12mm    HP/Compaq:18.5V/3.5A,18.5V/4.9A,18.5V/6.5A,19V/4.74A etc.
    M14 18.5V(90W Max) OVAL    HP/Compaq:18.5V/4.9A etc.
    M15 19V(90W Max) 5.5*1.7*12mm    Acer:19V/3.16A,19V/3.42A,19V/4.74A;   Liteon:19V/3.16A,19V/3.42A,19V/4.74A etc.
    M16 16.5V(90W Max) Magsafe    Apple Macbook Pro:16.5V/3.65A.
    M17 18.5V(90W Max) Magsafe    Apple Macbook Pro:18.5V/4.6A.
    M18 14.5V(90W Max) Magsafe    Apple Macbook Air:14.5V /3.1A.
    M16B 16.5V(90W Max) Magsafe 2    Apple Macbook Pro Retina:16.5V/3.65A.
    M17B 20V(90W Max) Magsafe 2    Apple Macbook Pro Retina:20V/4.25A.
    M18B 14.85V(90W Max) Magsafe 2    Apple New Macbook Air:14.85V/3.05A.
    M16C 16.5V(90W Max) Magsafe    Apple Old Macbook Pro:16.5V/3.65A.
    M17C 18.5V(90W Max) Magsafe    Apple Old Macbook Pro:18.5V/4.6A.
    M19 19V(90W Max) 2.5*0.7*10mm    Asus:19V/2.1A etc.
    M20 19V(90W Max) 4.0*1.7*12mm    HP:19V/1.58A etc.
    M21 19.5V(90W Max) Octagonal / Chip inside    Dell:19.5V3.34A etc.
    M22 19V(90W Max) 3.0*1.0*10mm    Samsung:19V/2.1A etc.
    M23 19.5V(90W Max) 4.5*3.0*12mm











    Chip inside

       Dell:19.5V/2.31A etc.
    M24 19.5V(90W Max) 4.0*1.7*12mm Bullet    HP:19.5V/2.05A etc.
    M25 20V(90W Max) 5.5*2.5*12mm    Lenovo:20V/2A,20V/3.25A,20V/4.5A etc.
    M26 19V(90W Max) 4.0*1.35*10mm    Asus:19V/3.42A; 19V/2.37A; 19V/4.74A etc.
    M27 19V(90W Max) 4.5*3.0*10mm    Asus:19V/3.42A; 19V/4.74A etc.
    M28 20V(90W Max) Square 11*4.5*11mm    Lenovo:20V/2.25A ; 20V/3.25A; 20V/4.5A etc.
    M29 19.5V(90W Max) 4.5*3.0*12mm Blue tip    HP Envy:19.5V/4.62A; 19.5V/2.31A etc.
    M30 19.5V(90W Max) 4.8*1.7*10mm Long tip    HP Envy:19.5V/3.33A ;19.5V/4.7A etc.
